ZENA® NO-Gastm All Aluminum Arc Welding Rods

Use Your Arc Welder to Weld Aluminum!







Now you can weld aluminum anywhere you can arc weld, even in poor conditions, without the need for a MIG or TIG torch, special welding wire, hoses, regulators, or expensive and heavy gas bottles.

These unique aluminum alloy welding rods let you weld and fill all cast, wrought and extruded aluminum and aluminum alloys, working in all positions, with a high quality high tensile strength (34,000 lb. / 18% elongation) aluminum alloy using only your arc welder!

They can also be used with a conventional oxyacetylene torch for gas welding aluminum!

These special aluminum welding rods are perfect for welding, repairing cracks, and building up missing sections of:

  • Aluminum sheet metal
  • Truck beds, bodies, and frames,
  • Loading ramps and docks,
  • Engine and motor blocks,
  • Machine bases and supports,
  • Pipe railings, banisters, stairs, diamond plate,
  • Transmission housings and gear boxes,
  • Irrigation piping,
  • Bus bars, electrical switch boxes and mounts.

Description:

Highly versatile, smooth running, easy-to-handle, all position Aluminum alloy arc/torch welding electrode for welding or filling low alloy Aluminum including aluminums alloyed with copper, silicon, and magnesium. Also excellent for joining dissimilar grades of Aluminum

Mechanical Properties:

  • Tensile Strength (psi & N/mm2)

  • Yield Strength (psi & N/mm2)

  • Elongation
34,000 psi (250 N/mm2)

20,000 psi (150 N/mm2)

18%


Current Type/Polarity:

DC reverse polarity (electrode positive)

Recommended Amperage:

Rod Diameter

3/32" (2.3mm)



1/8" (3.25 mm)

















Minimum Amperage

50



70

















Maximum Amperage

80



120





Rod Diameter:

3/32" (48 rods/lb.)

1/8" (28 rods/lb)

Product Features:

  • Universal electrode for arc welding all cast, wrought and extruded aluminum and aluminum alloys in all positions.

  • Also excellent for joining dissimilar grades of Aluminum and Aluminums alloyed with copper, silicon, and magnesium.

Typical Applications:

  • Truck body/frame repair/fabrication
  • Cafeteria equipment repair/fabrication
  • Loading ramps/dock repair/fabrication
  • Engine and motor blocks/cylinder head repair
  • Repair and fabrication of machine bases and supports
  • Repair and fabrication of pipe railings, banisters, stairs, diamond plate
  • Transmission housings and gear box repair/fabrication
  • Repair and fabrication of irrigation piping, mixers, paddles, vats,
  • Repair and fabrication of electrical bus bars, electrical switch boxes. and mounts

Recommended Welding Techniques:

  • OK for welding in flat, horizontal and vertical applications.
  • Clean weld area by removing oil and grease and by wire brushing and/or sanding/grinding the immediate weld area just prior to welding. Chamfer edges of plated to be joined and open up/chamfer cracks and/or holes to be filled. Preheat heavy sections broadly. In thick to thin joining, preheat heavier member. For multi-pass work, it might be necessary to reduce amperage setting as base metal increases in temperature.
  • A close arc should be maintained. Feed electrode quickly and move fast. When picking up each bead, weld into the previous crater before continuing.
  • Upon cooling, slag/flux can easily be removed by chipping/brushing/sanding/grinding.
  • Expect best results using motor driven welding equipment with generators with DC rectified DC output.

Packaging:

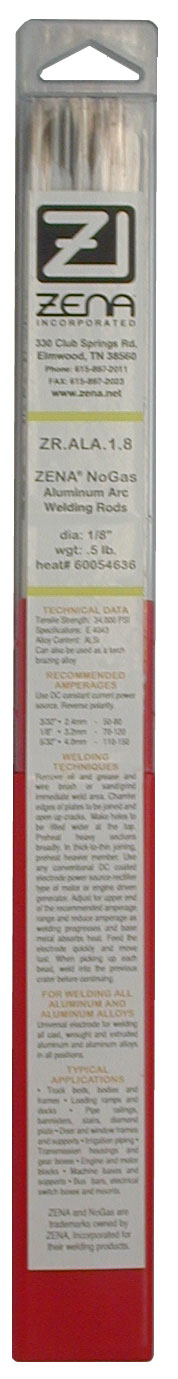

3/32" 1/2 lb. box (24 rods)

1/8" 1/2 lb. box (14 rods)

Larger packs/quantities and different rod sizes available as special order items.

Check our Product Specifications Section or our Online Store, Welding Supplies Section for current pricing or call our order desk (toll free) at 877- ZENA INC (weekdays from 9:00 AM to 5:00 PM CST).
